LED sport light

LED sport light


LED sport light 200W-1500W for outdoor sport field lighting, 100-277V or 347V-480V.

  • LED Sport Light is designed to meet the needs for outdoor athletic sport field lighting, 200W-1500W available.Using high lumen efficient Phillip SMD LEDs and quality Meanwell driver, up to 140lm/W, with adjustable strong bracket mount and various beam angle options for different lighting distribution.

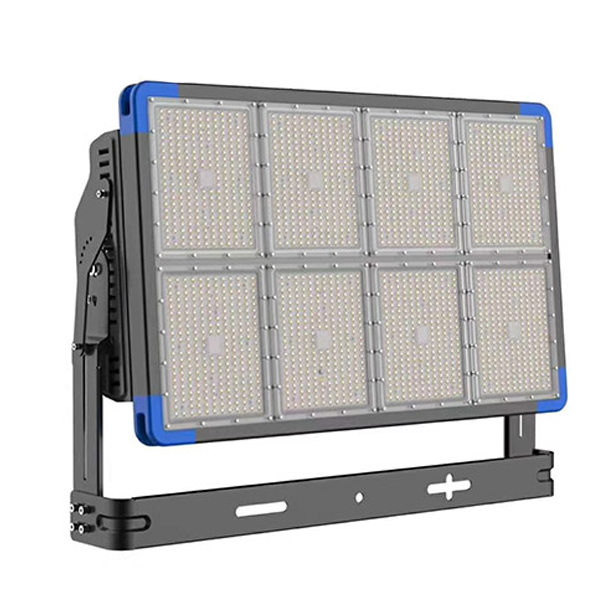

    LED sport field light 200W-1500W

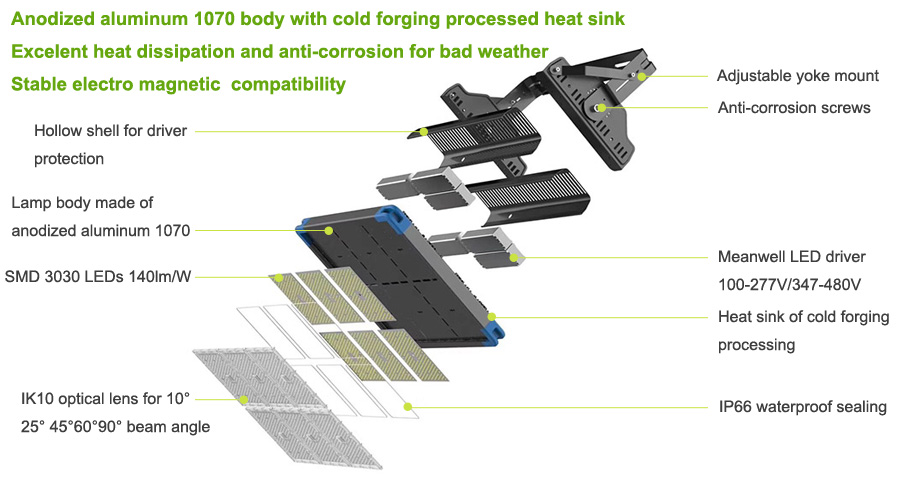

    Product Features:

        1) Lamp body made of anodized aluminum 1070,good anti-corrosion, intensity, suitable for bad weather.

        2) Heat sink of cold forging processing ensures brilliant heat dissipation performance.

        3) 3030 SMD  LED chip up to 140lm/W.

        4) Beam angle options: 10°/25°/45°/60°/90°.

        5) Optical PC lens with transmittance of 94% .

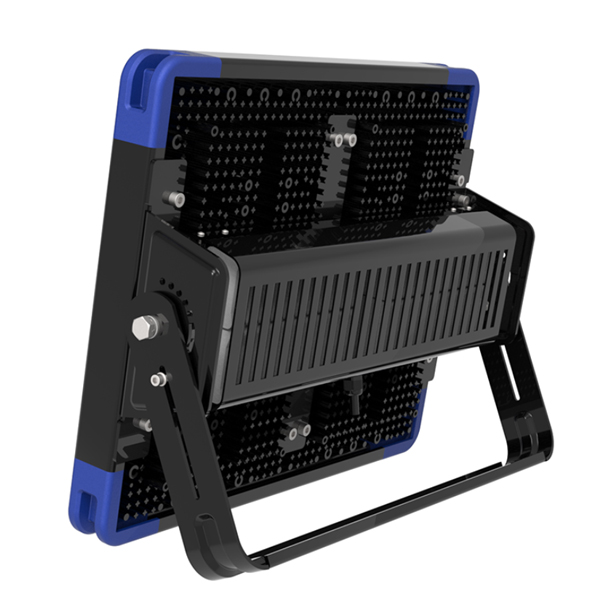

        6) Adjustable strong bracket  for installation.

        7) IP66 IK10 waterproof for outdoor lighting.

        8) UL meanwell driver.

        9) Dusk to dawn photocell is optional.

       10) 5 years warranty.

       11) Stable electro magnetic compatibility.

       12) Quick start with no flicker or noise.



    Lighting distribution:


    Lighting applications:

    Outdoor sport field lighting ,Gym lighting, Parking lot lighting, Project site lighting, historic building exterior lighting, billboard lighting etc.


  • LED Sport Light Fixture data information:

    Item No.
    G-SL-200W G-SL-360W
    G-SL-500W
    G-SL-1000W
    G-SL-1500W
    Rated Watt
    200W
    360W
    540W
    1,080W
    1,440W
    Input Volt
    100-295VAC / 200-480V, 50-60Hz
    Light source
    Phillip 3030 SMD LED
    Luminous Efficiency
    >130lm/W
    Lumens
    27,000lm
    48,000lm
    72,000lm
    145,000lm
    200,000lm
    Lighting Distribution
    10°/25°/45°/60°/90° beam angle options
    Color Temperature
    2700K ,3000k,4000k,5000k,5700k etc.
    Certificate
    ETL CSA  CE ROSH etc.
    CRI
    >80
    Power Factor
    >0.95
    IP Rating
    IP66 IK10 water-proof for outdoor lighting

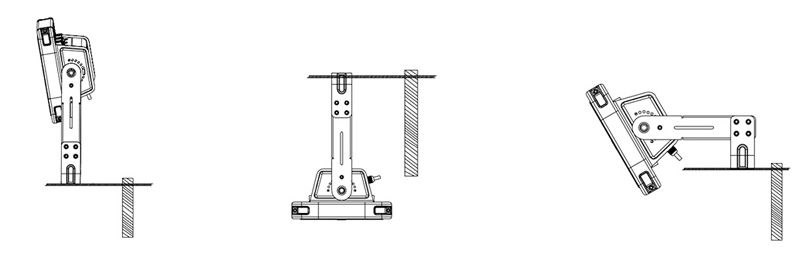

    Installation 3 pins wire with adjustable strong bracket mount
    Operating Temperature -40℃-50℃
    Applications
    sport field lighting/Project site lighting/historic building exterior ligting etc.
    Warranty 5 years factory warranty
    Life Span
    > 50,000hours

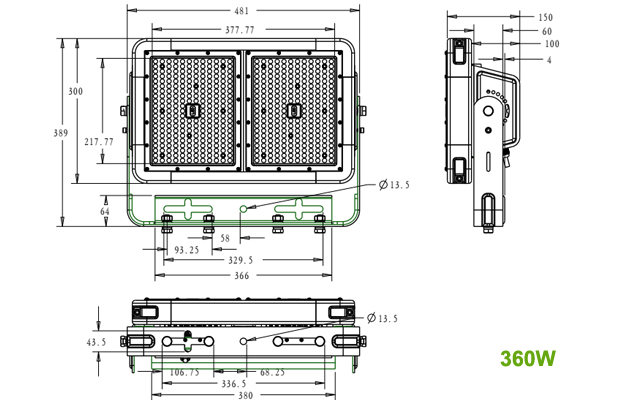

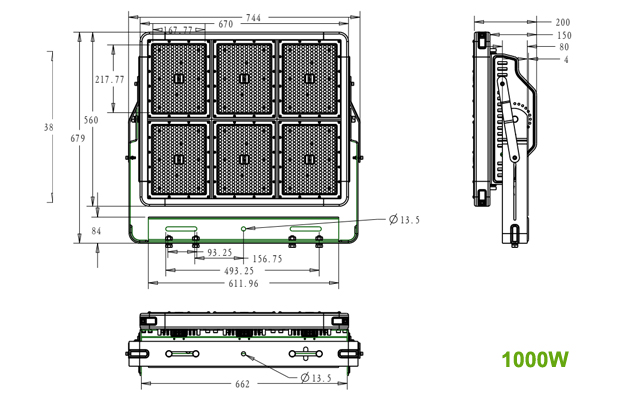

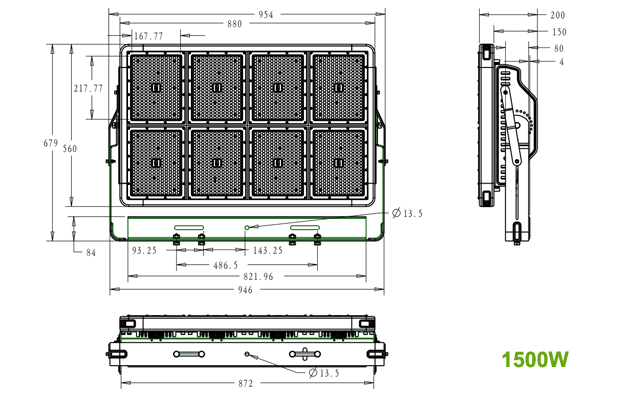

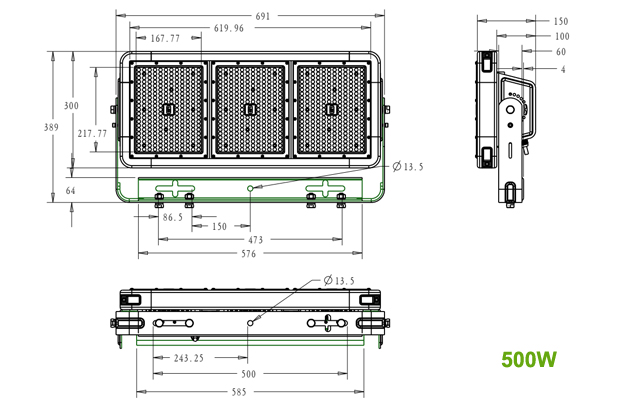

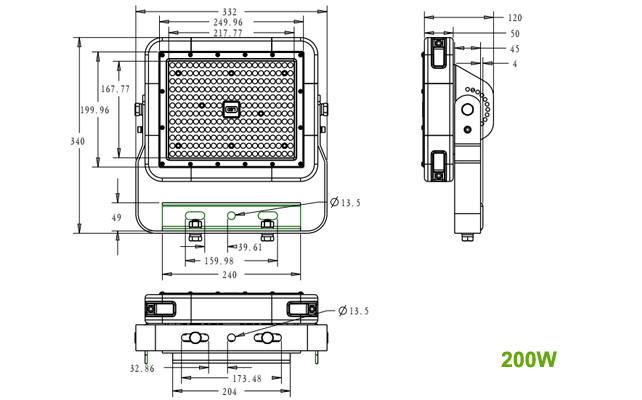

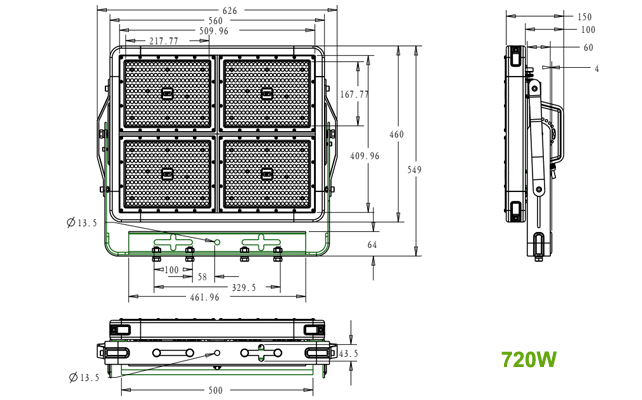

    Dimension:




  • Model
    QTY/CTN (pcs)
    Carton Size (mm)
    Gross Weight (kgs)
    200W
    1
    410*415*245
    7.2
    360W
    1
    600*415*245
    13.7
    540W
    1
    815*415*245
    23.0
    720W
    1 700*570*255
    26.5
    1040W 1 850*680*280 42.5
    1440W 1 1060*680*280 47.0
