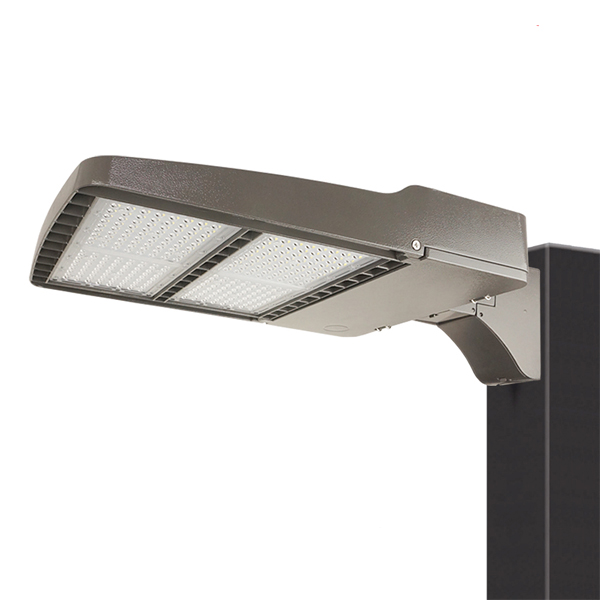

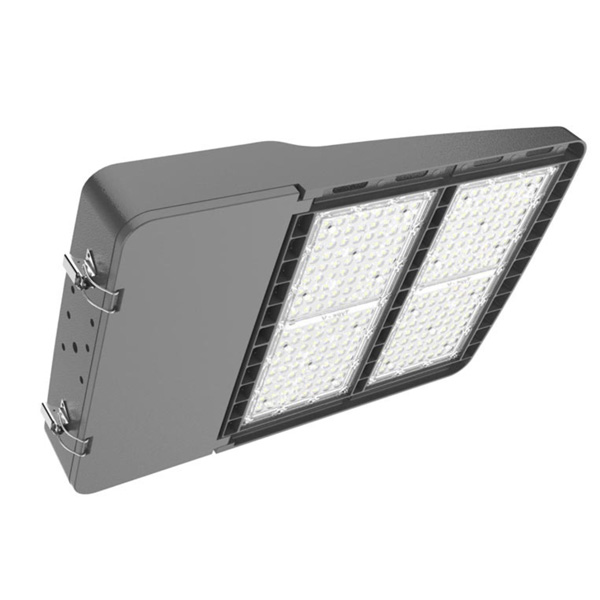

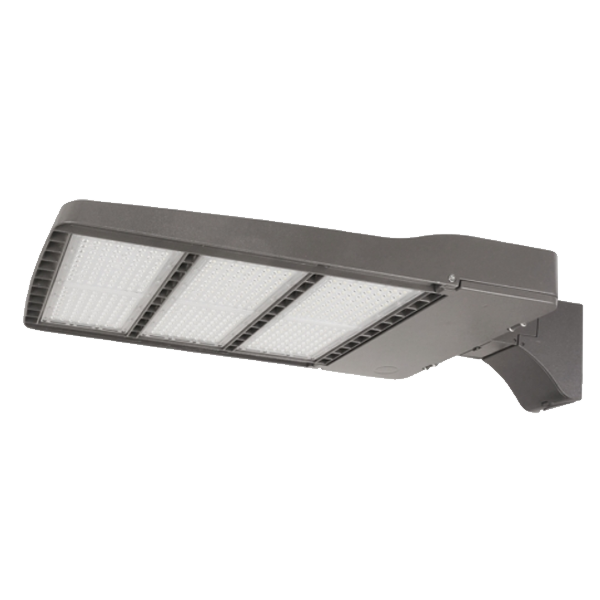

LED Shoe box light fixture UL DLC approved

LED Shoe box light fixture UL DLC approved


Watt : 80W 100W 120W 150W 300W
Volt : 100-277V,200-480V
3030 SMD LED 130lm/W
Power Factor : > 0.9
CRI : >70
IP65
ETL DLC listed
Life Time: over 50,000 hours
Warranty : 5 years
CCT : 2700K 3000K 4000K 5000K 5700K etc
Shell color: bronze / black / white

  • LED Shoe box Light Fixture 80W-300W  is designed to meet the needs for parking lot lighting, area street lighting etc., replacing  250W-1000W MH HPS HID old lighting fixture.

    Product Features:

        1)Hollow out fins sink heat aluminum dissipation system.

        2)IP65 UL Meanwell driver.

        3) 3030 SMD  LED chip 130lm/W.

        4)Beam angle options:type V ( 60°/90°/120°), type III ( 90°x140°),type II

        4)Multiple bracket options for installation.

        5) IP65 waterproof for outdoor lighting.

        6) ETL DLC listed with 5 years warranty.

        7) Dusk to dawn photocell is optional.


    Lighting distribution options:


    Lighting applications:

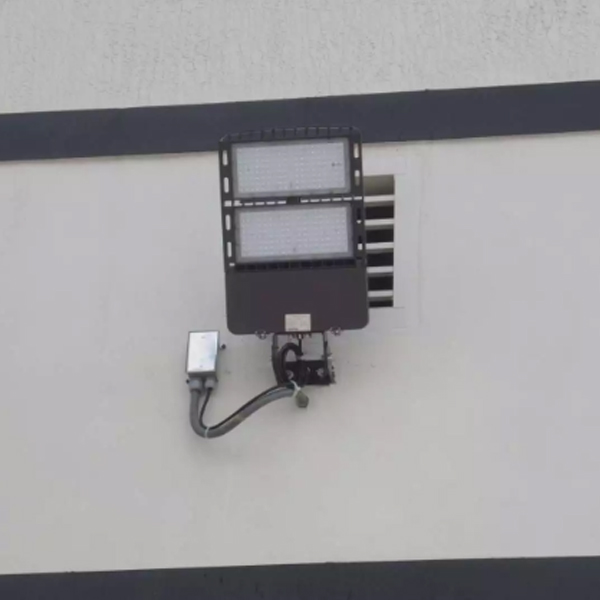

    LED shoe box fixture is mainly for outdoor parking lot lighting, car dealership site lighting, area street lighting, pole lighting etc..


  • LED shoe box light fixture data information:

    Item No.
    SBL-80W SBL-100W
    SBL-120W
    SBL-150W
    SBL-300W
    Rated Watt
    80W
    100W
    120W
    150W
    300W
    Input Volt
    100-295VAC / 200-480V, 50-60Hz
    Light source
    3030 SMD LED
    Luminous Efficiency
    >130lm/W
    Lumens
    10400lm
    14000lm
    15600lm
    20700lm
    40500lm
    Lighting Distribution
    type II, type III, type V etc.
    Color Temperature
    2700K ,3000k,4000k,5000k,5700k etc.
    Certificate
    ETL CSA DLC CE ROSH etc.
    CRI
    >80
    Power Factor
    >0.95
    IP Rating
    IP65 water-proof for outdoor lighting
    Installation 3 pins wire with multiple bracket options
    Operating Temperature -40℃-50℃
    Applications
    Parking lot lighting/area lighting/street lighting etc.
    Warranty 5 years factory warranty
    Life Span
    > 50,000hours




















    Mount options:

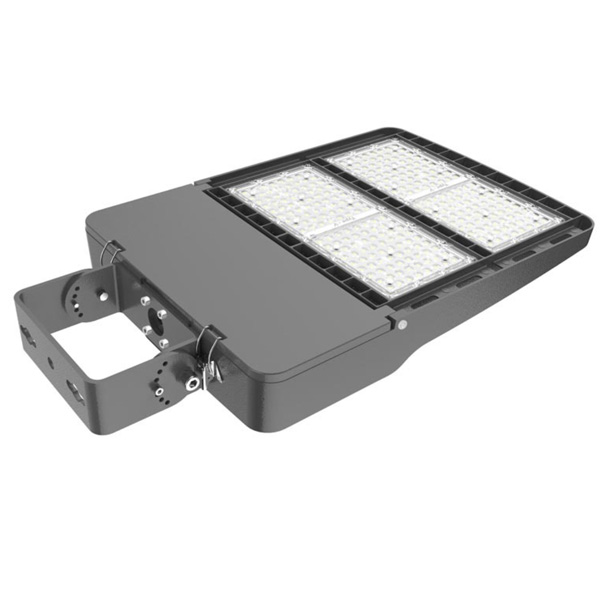

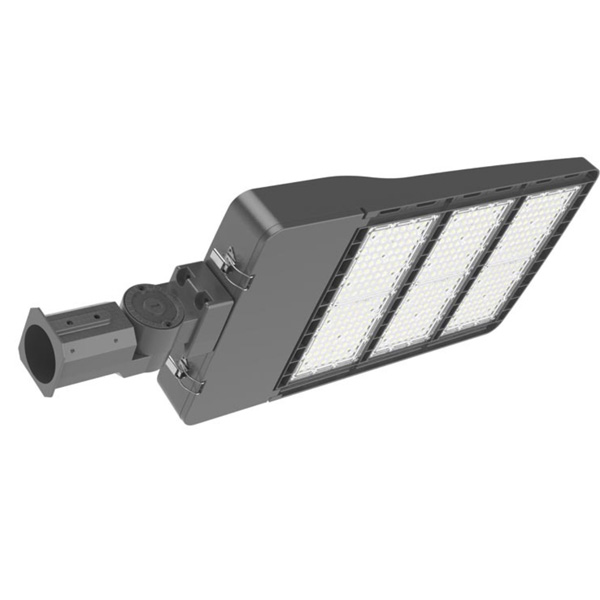

       a. slip fitter mount

       b. straight mount to square pole

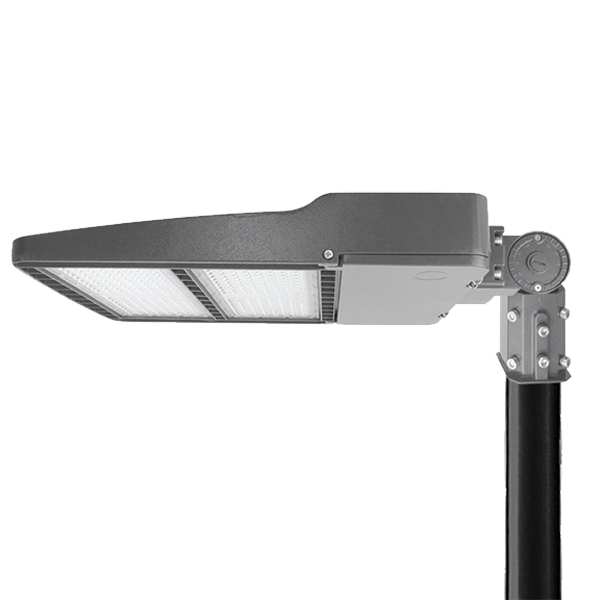

       c. straight mount to round pole

       d. trunnion mount



  • Single box packing:


  • LED shoe box lights  with slip fitter mount;


    LED shoe box lights  with straight mount to square pole;


    LED shoe box lights  with straight mount to round pole;


    LED shoe box lights  with trunnion mount;
